The Secret Meaning Behind The Mysterious Black Diamonds On Your Tape Measure

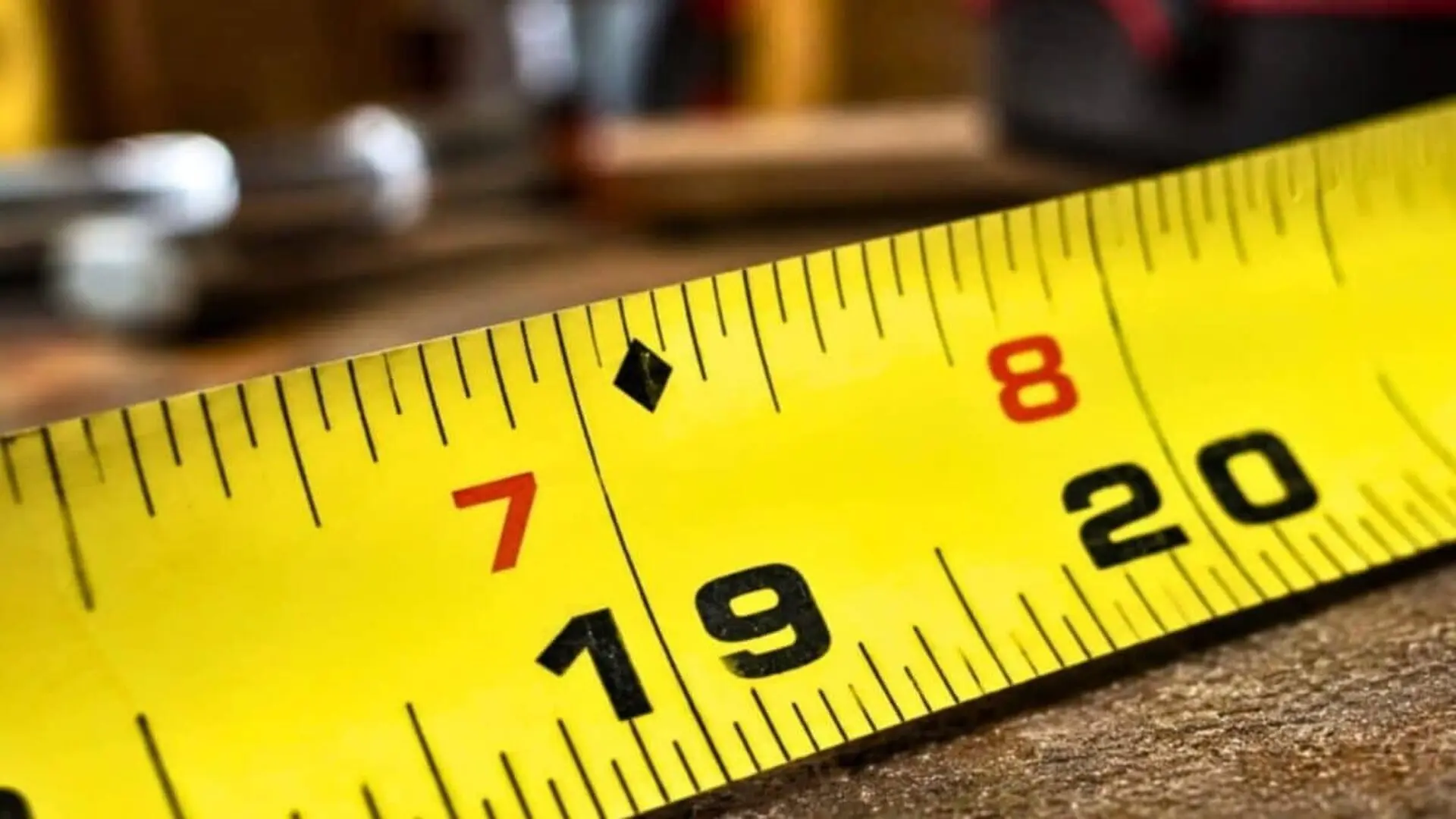

If you have ever closely inspected a professional-grade tape measure, you might have noticed small, mysterious symbols tucked between the standard inch markings. Among the most frequent, yet misunderstood, of these are the tiny black diamonds. While they appear with rhythmic, mathematical precision, they serve no decorative purpose and are rarely explained in the tool’s packaging.

For the average homeowner or casual DIY enthusiast, these marks are essentially invisible. For professional contractors and framers, however, they are a vital shortcut. As noted in a technical guide by West Fraser, these diamonds act as pre-calculated guides for installing floor joists beneath standard subfloor panels.

The Geometry of 19.2 Inches

The origin of these marks lies in the standard dimensions of construction materials. In North American building practices, a typical subfloor panel measures eight feet—or 96 inches—in length. To optimize structural support, builders often space framing members at specific intervals that allow the edges of these panels to land perfectly on a joist.

When a project calls for a 19.2-inch “on-center” layout, the builder is effectively dividing the 96-inch length of a panel into five equal sections. By printing a diamond every 19.2 inches along the tape, manufacturers provide a permanent, built-in reference that eliminates the need for repeated manual arithmetic. It allows a carpenter to simply hook the tape at the start of a run and place joists wherever a diamond appears, ensuring the spacing remains consistent across the entire floor system.

Preventing Cumulative Error

Beyond convenience, these markings serve a critical role in quality control. When a builder measures and marks each joist individually using standard inch increments, minor errors can compound over the length of a large room. If a measurement is off by even a fraction of an inch, that “drift” accumulates, eventually causing the final panel to hang over a void rather than resting on a joist.

The black diamonds act as a fixed template. Because the tape is calibrated to the diamonds independently of the user’s previous mark, the layout remains square and true. This visual sequence—19.2, 38.4, 57.6 inches, and so on—removes the subjectivity of the measurement process.

Navigating Construction Markings

The black diamonds are not the only specialized notations found on a contractor’s tape. Many blades also feature highlighted marks at 16-inch intervals, which are the standard for wall stud placement. These different indicators are meant to be used selectively based on the specific framing plan of the structure.

Ultimately, these symbols represent a highly specialized form of “embedded” engineering. By turning a standard measuring tape into a calculation tool, manufacturers have streamlined the workflow for generations of builders. While they remain largely irrelevant for hanging pictures or assembling furniture, the tiny diamond serves as a reminder that the tools in our drawers are often capable of far more than what we initially see on the surface.
