Calibration Methods in Biochemistry Analyzers

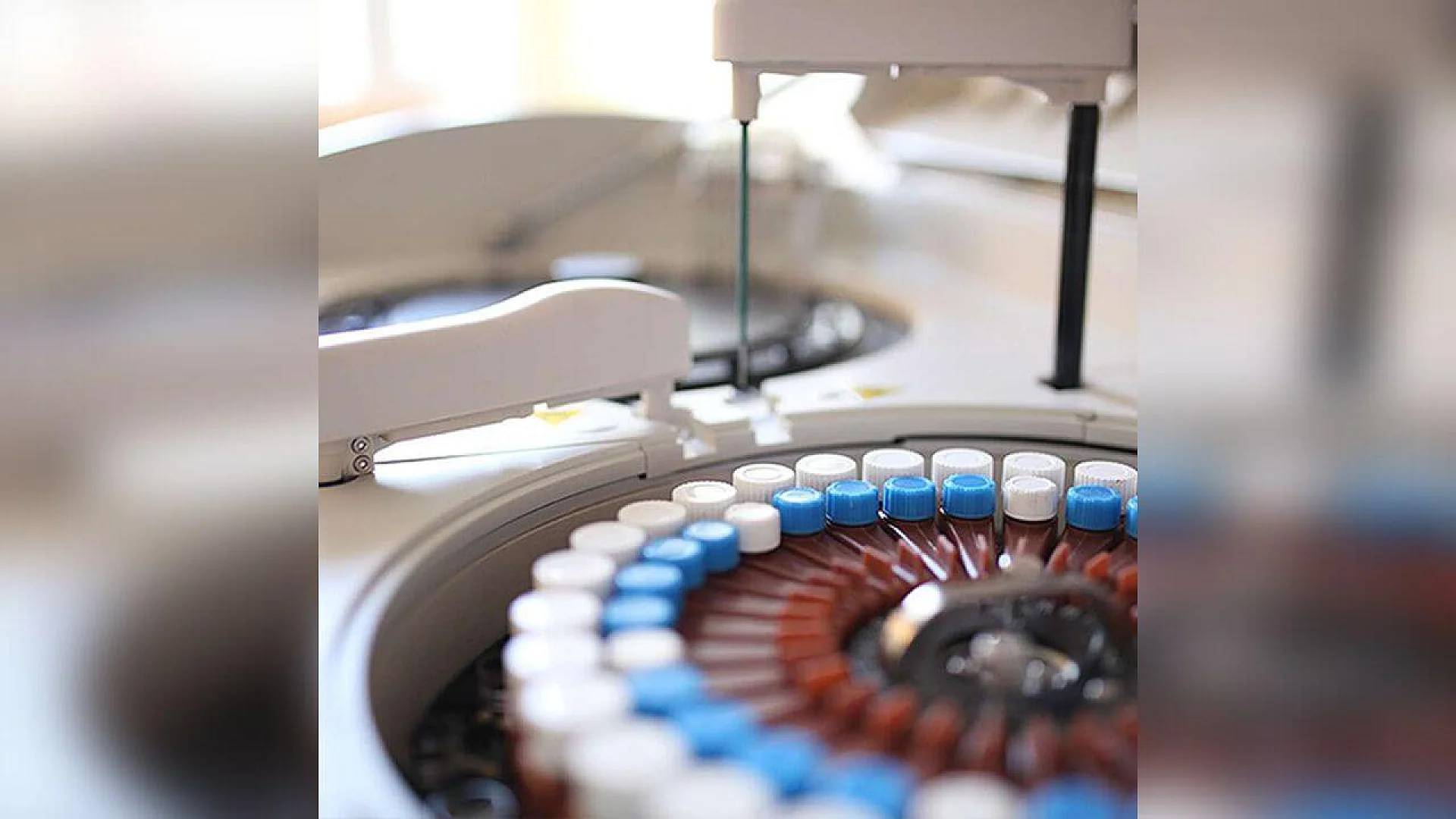

Clinical biochemistry analyzers do not directly read concentrations. What they actually measure is a signal. This signal may be light absorbance, fluorescence, electrical potential, or chemiluminescence. Calibration is the step that turns that raw signal into a meaningful number that clinicians can trust.

Because biochemical assays behave very differently from one another, there is no single calibration method that works for everything. Some assays follow neat straight lines. Others curve, bend, or flatten at high concentrations. Immunoassays often show classic S-shaped responses. That is why modern analyzers offer many calibration models, each designed to match a specific type of assay behavior.

Below is a detailed but easy-to-follow explanation of the main calibration methods used in biochemistry and immunochemistry systems.

1. Linear calibration

Linear calibration assumes a simple relationship. When concentration increases, the signal increases at a constant rate. This idea comes from Beer–Lambert law and works well for many routine chemistry tests.

The analyzer uses one or more calibrators to draw a straight line. From this line, it calculates patient results. Linear calibration is commonly used for glucose, urea, creatinine, cholesterol, and similar assays where the response stays predictable across the measuring range.

2. Two-point linear calibration

Two-point calibration is a simplified form of linear calibration. Only two calibrators are used, usually a zero or blank and a high standard.

The analyzer calculates the slope from these two points. This method is fast and practical for busy laboratories. However, it assumes perfect linearity between the two points, which is not always true at extreme concentrations.

3. Multi-point linear regression

In multi-point linear calibration, several calibrators are spread across the analytical range. A best-fit straight line is calculated using regression analysis.

This approach improves accuracy and reduces the effect of random analytical noise. It is widely used when linearity is expected but higher confidence is needed across the full range.

4. Factor or single-factor calibration

Factor calibration relies on a manufacturer-defined master curve. The analyzer measures a single calibrator and applies a correction factor to adjust the stored curve.

This method is common in enzyme assays and electrolytes, where reagent behavior is stable. It reduces calibration time and reagent use while maintaining acceptable precision.

5. Polynomial calibration

Polynomial calibration fits a curved equation instead of a straight line. Second- or third-order equations are typically used.

This method helps when assay response shows smooth but predictable non-linearity. However, polynomial curves can overfit the data if not carefully controlled, so many modern systems prefer spline or logistic methods instead.

6. Spline calibration

Spline calibration breaks the calibration curve into smaller segments. Each segment is fitted separately, but the joins are smooth and continuous.

This method closely follows real assay behavior, especially across wide concentration ranges. It works well when an assay is linear at low levels but bends at higher concentrations.

7. Log-linear calibration

In log-linear calibration, the signal axis, the concentration axis, or both are transformed using logarithms before fitting a line.

This approach is useful for assays with a wide dynamic range. It improves accuracy at low concentrations, where small errors can have big clinical effects.

8. Point-to-point calibration

Point-to-point calibration does not assume any overall curve shape. Instead, the analyzer interpolates directly between neighboring calibrator points.

This method reproduces calibrator values very closely. However, it depends heavily on calibrator quality and stability, since there is no smoothing from a global equation.

9. Four-parameter logistic calibration (4-PL)

Four-parameter logistic calibration is designed for sigmoidal responses. These S-shaped curves are typical of immunoassays.

The model defines a lower plateau, an upper plateau, the curve slope, and the midpoint. It provides excellent accuracy across low, medium, and high concentrations where linear models fail.

10. 4-PL X-transform calibration

In this variation, the concentration axis is mathematically transformed before fitting the curve.

This improves accuracy at the very low and very high ends of the measuring range. It is especially useful when assay sensitivity changes across concentrations.

11. 4-PL Y-transform calibration

Here, the signal axis is transformed instead of the concentration axis.

This helps stabilize signal variability and improves curve fitting when optical or luminescent signals compress or expand unevenly.

12. Five-parameter logistic calibration (5-PL)

Five-parameter logistic calibration adds one more parameter to the 4-PL model. This extra term allows the curve to be asymmetric.

Many real immunoassays are not perfectly symmetrical. The 5-PL model handles this better and improves accuracy in high-sensitivity testing.

13. Weighted non-linear regression

In weighted calibration, different parts of the curve are given different importance. Lower concentrations often receive higher weight.

This approach improves precision near clinical decision limits, where small errors matter the most. Weighting is often combined with logistic models.

14. Master curve calibration

Master curve calibration uses a factory-defined curve stored in the analyzer. Routine calibration adjusts this curve using one or two calibrators.

This reduces calibration frequency and reagent consumption while maintaining consistency across reagent lots. It is common in high-end automated systems.

15. Qualitative one-point calibration

Qualitative one-point calibration sets a single cut-off value using one calibrator.

Patient results are compared to this cut-off and reported as reactive or non-reactive. No numerical concentration is provided.

16. Qualitative two-point calibration

In two-point qualitative calibration, a negative and a positive calibrator define the decision range.

This improves reliability around the cut-off and is often used in screening and confirmatory assays.

17. Blank-adjusted calibration

Blank-adjusted calibration subtracts background signal before curve fitting.

This correction is important in colorimetric assays affected by reagent absorbance, turbidity, or sample color. It improves analytical specificity.

18. Instrument Calibration Technique (ICT)

ICT refers to analyzer-specific calibration algorithms that combine mathematical modeling with instrument corrections.

These systems account for optical drift, mechanical variation, and reagent characteristics. The goal is stable performance over time with minimal recalibration.
